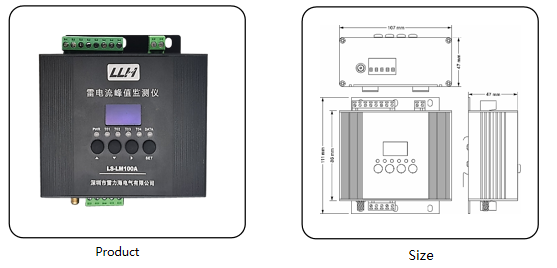

Peak lightning current monitor LS-LM100A
Product description：
●Support for standard 35mm DIN-RAIL and wall mounting, 1 inch OLED display, Standard MODBUS-RTU protocol.
●4 switch acquisition ports.
●1 surge peak value acquisition port. General 8/20us and 10/350us waveforms, trigger sensitivity adjustable, large memory with 9999 surge records (polarity, peak value, time of occurrence of surge and waveform of last surge) .
●DC 12V and AC 220V power supply optional.
●1 RS485 communication serial port for branch computer communication (connect with host communication port) .
●1 RS232 communication serial port for host communication (connect with branch communication port) . The default protocol is the non-standard Communication Protocol of the earth grid monitoring system. Customized protocol for simplified communication Gateway available.
●Switch data acquisition port is equipped with independent alarm indicator(normal open), remote alarm triggers when closed with visual and Buzzer warning.
●Up to 10 Switch alarm records (channel number, alarm date and time) .
●High accuracy.
●Designed for intelligent lightning protection monitoring system.
●Support Ethernet, Lora, 4G and other communication modes.
Description
FEEDBACK

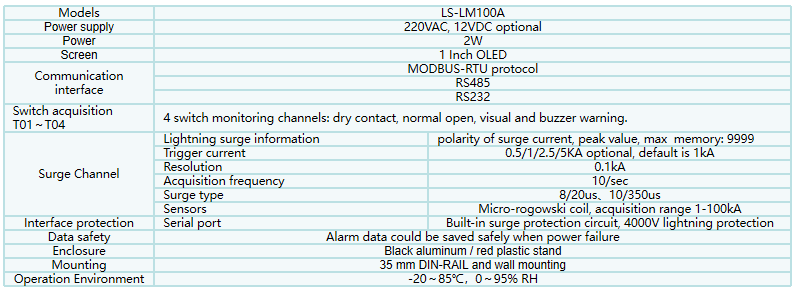

Technical parameter：
