Parallel-type power surge protection box with open door
Product Model：LPX 40B-385、LPX 50B-385、LPX 80B-385、LPX 100B-385
Description：
Description：
According to the need of protection, the surge protection box can combine the lightning arrester into three-phase (3 +
1,4 + 0) and single-phase (1 + 1,2 + 0) protection circuits of 40kA-200kA Input Terminal can be provided, open circuit
breaker, SCB release free choice and combination.
Features：
• Equipped with lightning counter, accurate recording of lightning strikes. .
• Open Circuit Breaker, SCB release, terminal free choice .
• It has lightning protection instruction, power supply working instruction and lightning protection device failure
instruction .
• Optional Lightning arrester module free combination type, suitable for a variety of power system.
Description
FEEDBACK

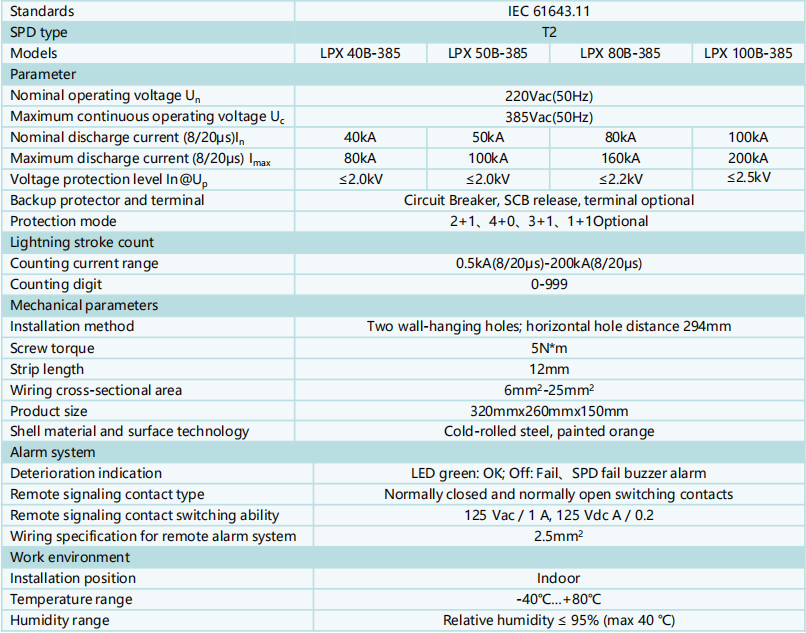

Parameter：
